Linking Budgets, Linking Networks, Linking Capacities
by Alvaro Sanchez
Madrid, Spain, November 4, 2019--Link budgets are living a new era. Not only capacity engineers are capable to make this calculation for the quotes. This way of calculating all the gains and losses between transmitters and receivers in satellite communications have significantly changed.
The first step in designing a satellite network is to perform a satellite link budget analysis. The calculation of the received power is a set of complicated processes that not everyone could find the right answer, therefore, a specialist is called to manage this complex task involving a complex excel sheet. Now, everybody in the satellite industry can calculate the link budget margin with just using Beam Budget.
Then, you would ask, what is Beam Budget? It is a web-based easy to use; the simplest for quick and accurate link budget calculations. This software solves thousands of link budget calculations in a few seconds.
In terms of user experience, this tool has a user-friendly interface with the ability to generate incredible graphics and charts along with the most relevant conclusions. This data is easy to understand for the entire network, including all profits and losses. In this way, sales representatives have the possibility to provide a correct offer in a very short period time, doing the link budget themselves.
One of the biggest issues with a link budget calculation is the volume of parameters that need to be input in order to obtain an accurate calculation. With the link budget tool, the only requirement is to fill a few inputs, after that, you will be getting more than 200 results instead of taking 1 or 2 weeks. Optimizing time ensuring accurate calculations is relevant to everybody.
On the one hand, signal degradation is not allowed in this industry, no selecting the wrong satellite or transponder. On the other hand, completing link budgets correctly and accurately with the correct tool, maximizes revenue and available user capacity. As a result, customer experience will increase exponentially and service reliability will increase much more, allowing a major number of business.

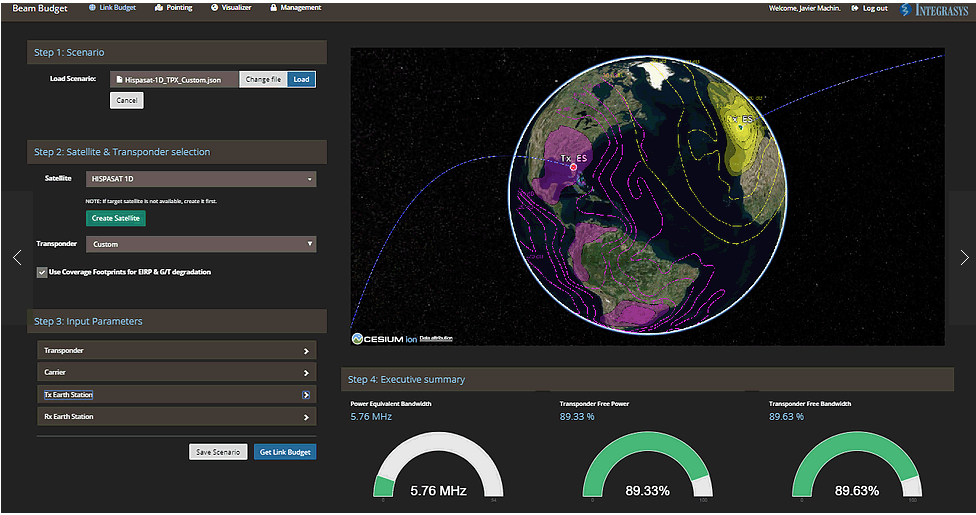

Beam Budget provides users with charts and maps that help them quickly and easily visualize the relevant results of the link transmission speed and margins, as well as bandwidth and power to use for the desired availability.
In most cases, this work requires at least 70 parameters that include: Uplink power amplifier gain and noise factors; Transmit and receive antenna gain; slant angles and corresponding atmospheric loss over distance; climactic attenuation factors; satellite transponder noise levels and power gains; receive antenna and amplifier gains and noise factors; cable losses; adjacent satellite interference levels; and intermodulation interferences. However, Beam Budget requires less than half of them for the same accuracy.
The goal of Integrasys was to ensure that all possible frequency bands and types of satellites were covered in a single tool, rather than having to further complicate matters using multiple tools, and it does with great results when the functionalities of different tools can be brought together in a single web-based app.
Each input needs its own elaboration separately, for both the uplink and downlink frequencies. With the tool, the company wanted to introduce a tool that could provide highly accurate results with fewer inputs. This tool can provide more than 2500 link budget calculations with 200 results from just 45 inputs. Moreover, Integrasys has developed a new full-duplex function in which performs calculations from the HUB to the VSAT and the VSAT to the HUB, and a latest option to a regional network link budget.
The software is available for every frequency band and enables users to upload different types of satellite data. Every modulation is also supported. The result is the most accurate link budget calculation product possible for a perpetual use.
 |
|
View a video on Link Budget Basics at: |
For a commercial visit to any customer, the link budget is really important for the purchase and sale satellite capacity. These calculations allow satellite operators to confidently establish new satellite networks to ensure the best performance for a client network. Established networks use link budgets to calculate and demonstrate the capabilities of potential customers, as well as satellite users need these tools to ensure the service, selecting is the right choice.
If link budgets cannot be completed quickly enough, this could result in lost opportunities and costly expenses. Similarly, if a customer comes on board without an accurate calculation, they may quickly take their business elsewhere if the result does not match the expectations.
Quick and accurate link budget calculations are essential, making this tool accessible to anyone within an organization, as well as facilitating stakeholder understanding with the executive summary report.
As conclusion, Integrasys delivers disruptive technologies to simplify the satcom industry, bringing satellite to the people, facilitating operations, increasing revenues, saving up operational expenses and ensuring the maximum performance of the networks. Beam Budget is the finest solution for calculating link budgets easily, accurately and obtaining a considerable return on investment. Now, link budgets are more accurate and easier than ever.
Founded in 1990 by the Marquess of Antella and Hewlett Packard (HP) engineers, Integrasys specialises in providing satellite spectrum monitoring systems for the satellite, telecommunication, and broadcast markets. Its solutions enable fast and efficient installation and monitoring, helping reduce both errors and cost.
