Case Study: Maximizing Uplink Performance: TEAM:MEDIA's Collaboration with Orbital Connect and Terrasat
Vogošća, Bosnia and Herzogivina, September 4, 2024 - When TEAM:MEDIA Teleport from Bosnia and Herzegovina partnered with Eutelsat twelve years ago to launch the country's first satellite multiplex for Direct-to-Home (DTH) TV channels, it set the stage for a technological shift in the broadcasting industry nationwide. This pioneering move, which led to the widespread adoption of Multi-Channel Per Carrier (MCPC) mode by other TV stations to minimize interference and maximize bandwidth, didn't just change how content was delivered—it earned TEAM:MEDIA Teleport a second transponder from Eutelsat (C5), filled with attractive channels and HD content from the region, Europe and beyond, solidifying their role as a leader in regional broadcasting technology.
Today, TEAM:MEDIA'S diversified services include SD/HD distribution, SD/HD playout, TV signal encryption, overlay, equipment collocation/hosting, and occasional use services over satellite. In a recent project, TEAM:MEDIA Teleport successfully deployed a satellite-based solution to power DVB-T2 transmitters across the region, expanding their impact on content delivery.
The Challenge
TEAM:MEDIA Teleport faced the technical challenge of ensuring uninterrupted delivery of a diverse lineup of TV channels for DVB-T2 distribution via satellite while meeting rigorous industry standards for reliability and performance. The solution required overcoming adverse weather conditions and maintaining high service availability. To address these needs, TEAM:MEDIA sought a partner with specialized technical expertise capable of providing a solution that could function effectively under these challenging conditions and comply with a strict project timeline.
Solution
Orbital Connectt®, a trusted partner of TEAM:MEDIA Teleport, plays an essential role as an authorized distributor and system integrator of satellite products, broadcasting equipment, and RF components for their Teleport operations. Since the initial collaboration four years ago, Orbital Connect has become one of TEAM:MEDIA'S key suppliers of satellite equipment, thanks to their extensive hardware portfolio and support for leading industry brands.
TEAM:MEDIA relies on Orbital Connect's expertise to select the most suitable hardware that meets its precise technical requirements and offers high reliability.
To meet these needs, Orbital Connect provided two Terrasat IBUC R Low-Ku Band 100W AC power BUCs and a Terrasat IBUC R Ku-Band 100W Tx Redundancy System. These components were installed on the uplink antenna at TEAM:MEDIA's Teleport premises, ensuring the reliability and resilience required for the project.
Terrasat iBUC Ku-Band Amplifiers: The Backbone of TEAM:MEDIA's Technological Solution
Terrasat iBUC Ku-band amplifiers, crucial for ensuring stable and high-quality signal transmission, are a cornerstone of Team: Media's technological solution.
The IBUC R is an integrated smart BUC/GaAs SSPA designed for higher performance under challenging operating conditions. These BUCs deliver exceptional performance guaranteed through individual unit testing over temperature. An essential feature of the IBUC R series is its superior linearity and minimal backoff requirements, resulting in maximum useable output power. These features make Terrasat IBUC an ideal solution for higher-power Satcom terminals transmitting multiple carriers.
Redundant iBUC System: Uninterrupted Reliability in Broadcasting
The Teleport implemented a redundant iBUC system using Terrasat amplifiers to enhance system reliability further. This system automatically switches the signal to a backup amplifier in case of a failure, enabling continuous broadcasting without interruption. This technology is essential for Teleport's clients, as it ensures a stable signal transmission to end-users, which is crucial for maintaining a connection with a broad audience. Terrasat IBUC 1:1 Redundant System uses innovative hot-standby technology and IBUC intelligence without an external logic controller. An Eco-mode option for warm standby using less energy is also included.

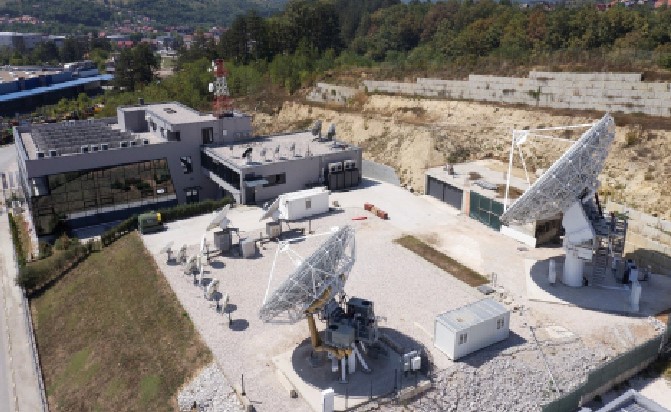

TEAM:MEDIA's teleport in Bosnia Herzogovina
Benefits:
- A compact, integrated system
- Significant reduction in energy consumption
- A stable uplink service to the satellite platform
- Superior linearity for maximum useable output power
- 1:1 redundancy and automatic switchover in the event of BUC failure
- Reliable operation in harsh conditions
- Cyber Security for Hardware and Software
TEAM:MEDIA's Teleport's innovative satellite-based solution has impacted the region's broadcasting landscape by expanding access to diverse programming, enhancing viewer satisfaction through reliable service, and strengthening the local broadcasting industry's growth. Through its successful collaborations, TEAM:MEDIA Teleport has not only elevated the viewing experience for consumers but also played a pivotal role in driving progress and innovation within the broader broadcasting ecosystem of the region.
"Through our collaboration with Terrasat and Orbital Connect®, we have achieved exceptional results in delivering television content to a broad audience," said Samir Ligata CTO and Co-Owner of TEAM:MEDIA.
Orbital Connect® is a channel partner and authorized distributor of global leading satellite ground equipment manufacturers. Our product list includes over 3,000 satellite products and RF components, solutions, and terminals, such as Earth station antennas, fixed and maritime VSAT or receive-only antennas, terminals on the move and on the pause, high-power amplifiers, modulators, de-modulators, redundant systems, modems, RF products and matrices, RF over fiber solutions, LNBs, BUCs, BDCs, LNAs.
For more information on Orbital Connect® go to: www.orbitalconnect.com
